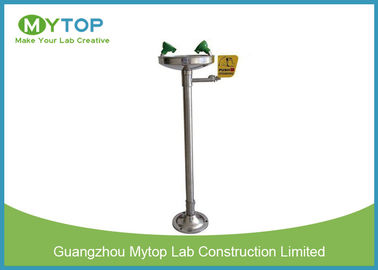

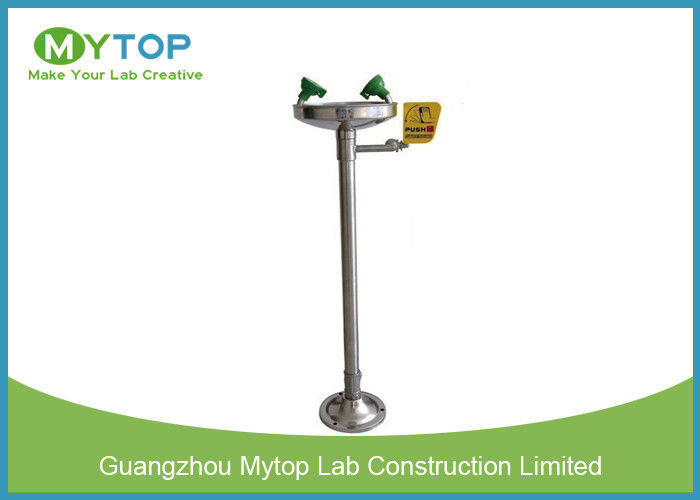

PVOC Stainless Steel Emergency Shower And Eyewash Station For Chemical Industry

1. Product

PVOC Stainless Steel Lab And Chemical Industry Safety Combination Eye Wash Shower

2, Feature

A. quality assurance: assurance of 1 years of quality normal trial under no Water Leakage

B. installation: table is arranged, usually placed on the table, it can be used at any time of emergency extraction, easy to use

C. fixed base: SUS304 stainless steel, surface polishing treatment, and acid and alkali resistance, corrosion prevention, such as the new

D. red body and a switch handle: the non combustion PP material

E. eye head: the non combustion PC material molded integrally molded manufacture, built-in stainless steel filtering net, can filter sundries in water

F. dustproof cover: PP material, usually can be dustproof, automatic water flushes when in use, and reduce the high water pressure suddenly opened a short, prevent red eye injury

3, single head eye washer nozzle can spray: extraction, a mist diffusion type and moderate intensity, fast and thorough cleaning of eyeball

Double eye washer: double nozzle center distance of about 108mm, the slope of about 45 degrees, but also pressure water, spray a mist diffusion type and moderate intensity, fast and thorough cleaning of eyeball.

3. Technical Data

Material: L304 Stainless Steel

Head of Shower: 10" Stainless Steel

Head of Eye washes: ABS, with 10" Stainless Steel Water pot in warning yellow

Valve of Shower: 1" L304/316 Stainless Steel ball valve

Valve of Eye Washes: 1/2" L304/316 Stainless Steel ball valve

Water inlet outlet: 1" Stainless steel valve with inside screw thread

Flow Control: Change with the pipe pressure but no more than 114L/ Min in specified pressure

Hydraulic Pressure: 0.2MPA-0.8MPA

Original Water: Clean or leached water

Operating environment: For almost industrial situation need to clean eyes or body

Pls take ant freezing measures well if used in cold area.

Can be used in acidity environment.
