|Product:||Biological Safety Cabinet||External Size:||L;1500*W:750*H:2250 Mm|
|Consumption:||700 W||Internal Size:||L:1350*W:600*H:660 Mm|
|Work Zone Material:||304 Stainless Steel||Power Supply:||AC220V±10% ,50/60 Hz;110V±10%，60Hz|
biohazard safety cabinet

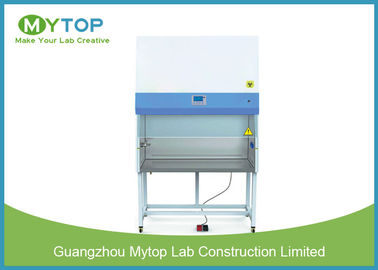

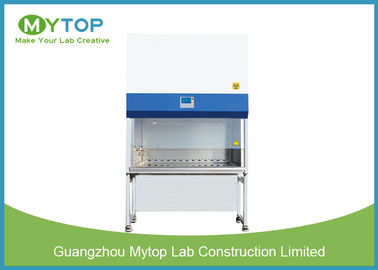

70% air Re-circulation Class II A2 Biological Safety Cabinet For Pharmacy Laboratory
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speeds adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made of single piece stainless steel
6. Single piece SS removable work tray.
7. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
8. Front 100 slanted to offer operator comfort while working for long time, reduce glare and maximize reach in to work area.
9. Armrest is above the intake of grill to enable farther reach inside the cabinet without hampering safe airflows inside the cabinet working area.
10. All the positive pressure contaminated plenums within the cabinet are surrounded by a negative air pressure plenum thus ensuring that any leakage from a contaminated plenum will be drawn into the cabinet and not released to the environment. Also the plenum to be under negative pressure to the room.
11. Differential pressure sensor for monitoring of condition of HEPA filters
4. Technical Data
|Internal Size (W*D*H)||1350*600*660mm|
|External Size (W*D*H) with base stand||1500*750*2250mm|
|Working height||8 inches|
|Max Opening||460 mm|
|Inflow Velocity||0.53±0.025 m/s ( 105 fpm) according to NSF 49|
|Downflow Velocity||0.33±0.025 m/s ( 65 fpm) according to NSF 49|
Two, 99.999% efficient at 0.3 um as per EN 1822(H14) with
Filter life indicator.
|Front Window||Motorized. Two-layer laminated toughened glass ≥ 6mm. Anti UV.|
|Noise||EN12469 ≤ 58 dB / NSF49 ≤ 61 dB|
|UV Lamp||40W* 1|
|Programmable, UV life indicator, emission of 253.7 nanometres for most efficient decontamination.|
|Waterproof Sockets||Two, total load of two sockets: 500W|
|Display||LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working hours etc.|
|Airflow System||70% air recirculation, 30% air exhaust|
|Visual and audio alarm||Filter replacement, window over height, abnormal air flow velocity.|
Interior : single piece 304 stainless steel
Work tray : single piece 304 stainless steel with lift out knobs
|Main Body: Cold-rolled steel with epoxy coating(Antimicrobial)|
|Base Stand||base stand - Foot Master (height adjustable)|
|Work Surface Height||750 mm(30”)|
|Caster||Foot master caster|
|Power Supply||110/220V±10%, 60/50Hz|
|Standard Accessory||Fluorescent lamp,UV lamp*2 ,Base stand, Drain valve, Waterproof sockets*2,Canopy(Thimble duct),Two plugged cable ports ,one on each side wall,6 service valves(Three on each side walls ),Arm rest , Foot rest|
|Water and Gas tap ( combustible & Non Combustible valve) )|
|Package Size (W*D*H)||1630*1000*1820 mm|
