Product Details:
Payment & Shipping Terms:
|
| Product: | Laminar Flow Cabinet | Usage: | Create A Section Class 100 Clean Room |
|---|---|---|---|
| Application: | Any Microbiology Laboratory | Size: | 4 Feet |
| Working Direction: | Single Side And Single Person | Windows: | Temperaing Glass |
| High Light: | laboratory pass box,ffu fan filter unit |
||
1. Product

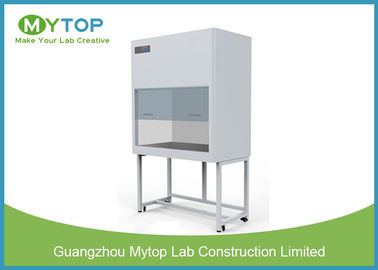

4 feet Clean room Laboratory Class 100 Vertical Laminar Flow For Microbiology L
2. Application
Any microbilology laboratory need a section Class 100 clean room
3. Technical Data
| Model | BBS-V1300 | BBS-V1800 |
| External Size(W*D*H) | 1310*750*2040mm | 1800*750*2040mm |
| Internal Size(W*D*H) | 1200*645*610mm | 1700*645*610mm |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side and Front Windows:5mm toughened glass anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| Fluorescent Lamp | 28W*1 | 36W*1 |
| UV Lamp | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 450W |
| Waterproof socket | Two, total load≤500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | Fluorescent lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2 | |
| Gross Weight | 228kg | 306kg |
| Package Size(W*D*H) | 1460*1070*1650mm | 1960*970*1600mm |
4. Features
A. LCD Display: Airflow velocity, UV timer, UV work time, system work time, real time
B. Water socket: 2 waterproof sockets are located in the side panel, for optimum convenience of using small devices inside the cabinet
C. UV Lamp : Emission of 253.7 nanometers for most efficient decontamination
D. Side glass window: The transparent side glass windows maximize light and visibility inside the cabinet,
providing a bright and open working environment.
