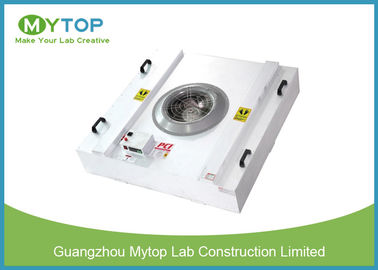

Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise

Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise
Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise

Large Image :  Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-FFU-1175

Payment & Shipping Terms:

Minimum Order Quantity: 10 Units
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 10 to 18 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000 Units Per Month
Detailed Product Description
Category: Clean Room Lab Equipment Product: FFU
Size:: L:1175*W:575*H:320 Mm Air Capacity: 1060 CMH
Noise: Less Than 52 DB Power Supply: 220 V, 50 Hz
High Light:

laboratory pass box

,

laminar flow cabinet

1. Prouct



Class 100 Clean Room Fan Filter Unit FFU For Air Filter Laboratory Equipment





2. Application



2.1 FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s±20%.



2.2  Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.





3. Technical Data



model FFU
Demension(L*W*H) 615*615*320 575*575*320 875*575*320 1175*575*320 1175*1175*320
Size of Hepa filter 610*610*69 570*570*69 870*570*69 1170*570*69 1170*1170*69
Fan Volume(m3/h) 550m³/h ±20% 550m³/h ±20% 900-1000m³/h ±20% 1060m³/h ±20% 2200m³/h ±20%
Clean level 100
Filtration Efficiency 99.999%@0.3μm
Noise ≤52db
Material Aluminum coated zinc plate
Voltage 220VAC 50Hz
Power 80-145 ±10%W





4. Feature



4.1 Save energy

4.2 Can be recycled and invested 5 years later

4.3 Easily to be controlled

4.4 Numbers to be controlled is large.

4.5 Low noise



Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise 0Class 100 FFU Fan Filter Unit For Clean Room For Air Filter Low Noise 1
