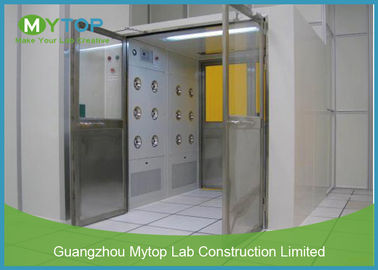

Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom

Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom
Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom

Large Image :  Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-2P2S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 10 to 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000 unit
Detailed Product Description
Catergory: Clean Room Lab Equipment Product: Goods Air Shower
Material: 1.0 Mm 304 Stainless Steel Usage: Cargo Air Shower In Clean Room
External Size: L:2000*W:1500*H:2050 Mm Air Speed: 25 M/s
Internal Size: L:1500*W:1400*H:1960 Mm Customization: Acceptable For Size And Material Customized
High Light:

laminar flow cabinet

,

ffu fan filter unit

1. Product

Automatic Blowing Double Doors Electric Interlock Cargo Goods Air Shower



2. Application

Air shower is a kind of local purifying equipment, mainly installed between clean room and non-clean room. People and cargos have to get a shower before entering into the clean area. It can effectively remove the dust carries by people or cargos thus to prevent or reduce dust from getting into the clean area.





3. Features:


1. Photoelectric sensor, automatic blowing.

2. Designed with circulation wind to ensure the cleanness of shower area under non-shower status.

3. Double doors with electric interlock.

4. LED display with adjustable blowing time (0-99 min).

5. HEPA Filter, Class 100 cleanness.




4. Optional Accessories:
1. All stainless steel cabinet
2. Stainless steel inner wall
3. UV lamp
4. Air flow electrostatic device
5. Hidden door system


5. Specification





Model AS-1P1S AS-1P2S AS-2P2S
External Size(W*D*H) 1300*1000*2050mm 1500*1000*2050mm 1500*2000*2050mm
Shower Area Size(W*D*H) 800*890*1930mm 800*890*1930mm 800*1890*1930mm
HEPA Filter 99.999% efficiency at 0.3 um
Spraying Wind Speed 25m/s
Air Shower Time 0-99s (adjustable)
No.of SS Nozzles 6 12 24
Fluorescent Lamp 20W*1 20W*1 20W*2
Consumption 1000W 1500W 2000W
Cabinet Material (Optional)

1. Full cold-rolled steel with powder coating.

2. Internal stainless stell,external with cold-rolled steel

3. Full Stainless Steel.

Door Material

(Optional)

1. Cold-rolled steel with powder coating.

2. Stainless Steel

Chassis Stainless Steel
Power Supply 110/220V,50/60Hz





Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom 0

Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom 1
 Electric Interlock Cargo Goods Air Shower Tunnel With Double Doors For Cleanroom 2
