Category: | Clean Room Lab Equipment | Product: | FFU |
---|---|---|---|
Size:: | L:575*W:575*H:320 Mm | Air Capacity: | 550 CMH |
Noise: | Less Than 52 DB | Power Supply: | 220 V, 50 Hz |
High Light: | laboratory pass box,laminar flow cabinet |
1. Prouct

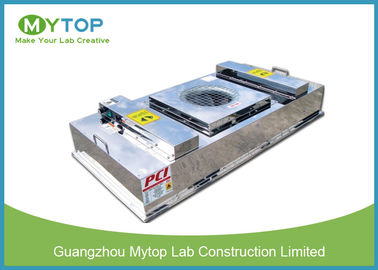

Clean Room HEPA Ceiling Fan Blower Fan Filter Unit FFU For Hospital Laboratory Equipment
2. Application
2.1 FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. The air flow can reach 0.45mm/s±20%.
2.2 Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room ,laminar flow hood ,etc.
3. Technical Data
Model | FFU | ||||
Demension(L*W*H) | 615*615*320 | 575*575*320 | 875*575*320 | 1175*575*320 | 1175*1175*320 |
Size of Hepa filter | 610*610*69 | 570*570*69 | 870*570*69 | 1170*570*69 | 1170*1170*69 |
Fan Volume(m3/h) | 550m³/h ±20% | 550m³/h ±20% | 900-1000m³/h ±20% | 1060m³/h ±20% | 2200m³/h ±20% |
Clean level | 100 | ||||
Filtration Efficiency | 99.999%@0.3μm | ||||
Noise | ≤52db | ||||
Material | Aluminum coated zinc plate | ||||
Voltage | 220VAC 50Hz | ||||
Power | 80-145 ±10%W |
