Product Details:
Payment & Shipping Terms:
|
| Catergory: | Clean Room Lab Equipment | Product: | Air Shower |
|---|---|---|---|
| Material: | 1.0 Mm 304 Stainless Steel | Usage: | Pass Goods In Clean Room |
| External Size: | L:1500*W:200*H:2050 Mm | Air Speed: | 25 M/s |
| Internal Size: | L:800*W:1890*H:1930 Mm | Customization: | Acceptable For Size And Material Customized |
| High Light: | laboratory pass box,laminar flow cabinet |
||
1. Product

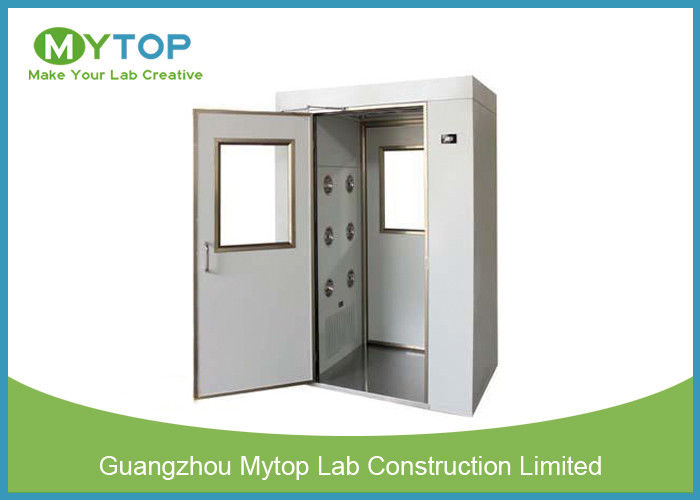

Automatic Stainless Steel Air Shower Cleaning Room Lab Equipment Electronics Industry
2. Application
Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
3. Features:
1, Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2, Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.
3, Floor and nozzles are made of quality stainless steel.
4, 99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.
3. Specification
| Model | MT-1P1S | MT-1P2S | MT-2P2S |
| External Size(W*D*H) | 1300*1000*2050mm | 1500*1000*2050mm | 1500*2000*2050mm |
| Shower Area Size(W*D*H) | 800*890*1930mm | 800*890*1930mm | 800*1890*1930mm |
| HEPA Filter | 99.999% efficiency at 0.3 um | ||
| Spraying Wind Speed | 25m/s | ||
| Air Shower Time | 0-99s (adjustable) | ||
| No.of SS Nozzles | 6 | 12 | 24 |
| Fluorescent Lamp | 20W*1 | 20W*1 | 20W*2 |
| Consumption | 1000W | 1500W | 2000W |
| Cabinet Material (Optional) |
1. Full cold-rolled steel with powder coating. 2. Internal stainless stell,external with cold-rolled steel 3. Full Stainless Steel. |
||
|
Door Material (Optional) |
1. Cold-rolled steel with powder coating. 2. Stainless Steel |
||
| Chassis | Stainless Steel | ||
| Power Supply | 110/220V,50/60Hz | ||
