Product Details:
Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-LFC-SDC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Plywood Packing
Delivery Time: 12 to 18 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000 Unit Per Month
Detailed Product Description
Product: Laminar Flow Cabinet Size: L: 1440*W :615*H: 1770 Mm
Casing Material: 1.0 Mm Cold Roll Steel With Epoxy Coating Working Surface: 750 Mm
Pwer: 600 W Power Supply: 110V/220V±10%, 50/60HZ
High Light:

laminar flow cabinet

,

ffu fan filter unit

1. Product

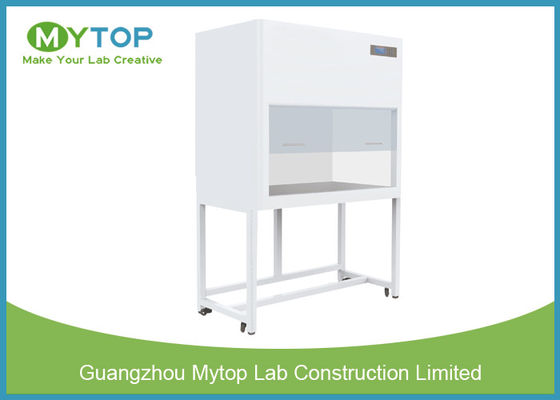

Vertical Laminar Flow Cabinet Clean Bench For Clean Room Lab Equipment





2. Application



2.1 Laminar Flow Cabinet-sample protection only

2.2 Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air hrough a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

2.3 Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.




3. Advantage


1. Odor-remove function.

2. Single water sink, two-person operations.

3. Exhaust air system: High-power suction device, low noise.

4. The base cabinet is inward-concave type, convenient for sitting operation.

5. Automatic flushing device, slightly right-side inclined worktable, easy for waste discharge and cleaning.

6. Optional water heater is available, realizing hot &cold water adjustment.

7. Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes.





3. Technical Data







Model MT-LAFC-V680 MT-LFC-V800 MT-LFC-DDC MT-LFC-SDC

External Size

(W*D*H), mm

680*410*1160 802*650*1550 1040*615*1770 1440*615*1770

Internal Size

(W*D*H), mm

630*375*615 800*600*540 940*540*545 1340*540*545

Work Surface

Height

/ 660mm 750mm 750mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window / Manual,5mm toughened glass, anti-UV
Max Opening / 490mm 350mm 350mm
Fluorescent Lamp 14W*1 14W*1 21W*1 28W*1
UV Lamp 15W*1 20W*1 18W*1 30W*1
Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W
Caster / Universal wheel with leveling feet
Power Supply AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ
Standard Accessory

Fluorescent lamp, UV lamp*2 ( for all models )

Water & gas tap (for model BBS-V680)

Base stand (except model BBS-V680)

Gross Weight 50kg 116kg 150kg 174kg
Package Size (W*D*H), mm 840*560*1380 960*800*1800 1190*890*1340 1590*890*133 0
