Product Details:
Payment & Shipping Terms:
|
Meterial: | 1.0 Mm Cold Roll Steel Sheet | Finishing: | High Temperature Epoxy Power Coating |
---|---|---|---|
Worktop: | 12.7 Mm Laboratory Phenolic Resin Worktop | Supporting: | C Frame Made Of 60*40*1.5 Mm Thickness |
Worktop Loading Capacity: | Over 200 Kg Per Meter | Reagent Rack Layer: | 10 Mm Tempering Glass |
Reagent Rack Loading Capacity: | Over 30 Kg Per Layer | ||
High Light: | modular laboratory furniture,steel laboratory furniture |
1. Product:

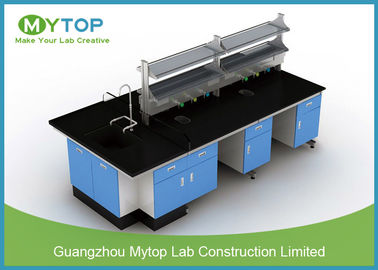

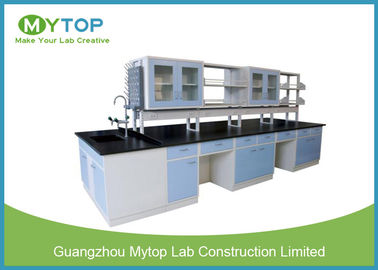

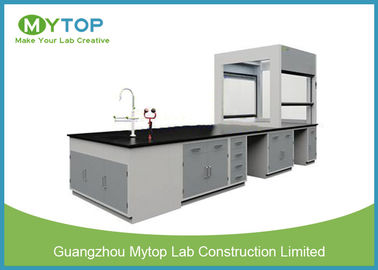

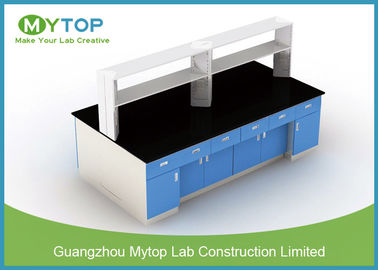

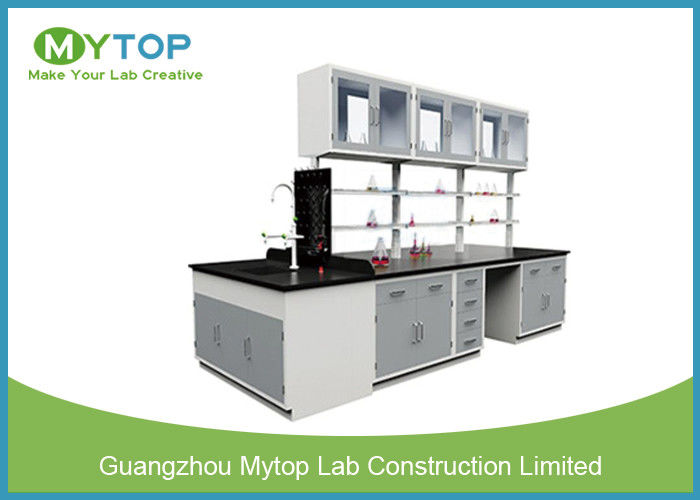

High Temperature Resistance Space Saving Grounded Cabinet Metal Laboratory Furniture Island Table
2.1 Structure: Steel structure
2.2 Worktop: 12.7 mm Laboratory Chemical Resistance Phenolic Resin Worktop
.
2.3 Doors and drawers panel: Made of 18mm high pressure semi-solid wood(MDF) covered with 0.4mm HPL (High Pressure Laminate) and sealed with 3mm PVC on edging strips. High quality of 175 degree open hinges, and embedded aluminum pulls coated with epoxy resin powder.
2.4 Cabinets body panels:
Made of 1.0 or 1.2 m mm cold roll steel with high temperature epoxy coating on the surface , Gavinlized steel is optional for your high demond
2.5 Regent shelves: Epoxy powder coated; Used 60*30*2mm tube steel to be the support column. Two layers of 12mm reinforced glass; Excellent of weight-bearing, solvents resistance. Stainless steel of guardrails on the both side of the layer to protect the regents from dropping off.
2.6 PP, ceramic sink and faucets: Anti-acid and alkali, beautifully finished and completed with the countertops.
2.7 Gas valve: Thick copper and epoxy resin-coated. Eye washer; Solid brass, coating with epoxy resin powder.
2.8 Sockets and aluminum duct; Suitable for variety of power supply system and flexible position change. Special lab socket, international standard for various of instruments and equipment.
3. Suitable for Whom
A. Any School Laboratory With Laboratory Equipemts not heavy than 280kgs but have large laboratory equipments
B. Any University Chemical , Physical or Bioliogical Laboratories
C Any owner want a more durable laboratory and want more space for storage
D. Any Reseach insistube laboratory who has small laboratory and limites space but need more storage space
4. More Worktop Option
Item and Worktops | Phenolic Resin | Epoxy Resin | Ceramic | Stainless Steel |
Raw Material | Laminated by kraft paper and phenolic resin | Mixed by epoxy resin and quart | Mixed by clay minerals | steel |
Thickness | 12.7mm |
15,16,19,20,25 mm |
20mm | 1.0 mm |
Ability to clean | OK | OK | OK | Good |
Resistance to acid-base | OK | OK | Good | Good |
Resistance to corrosion | resistance to corrosion of acid, alkali , solvent | resistance to corosion of acid, alkali, solvent | Good resisntace to corrosion of acid, alakli and solvent | normal resistanceto corrosion of acvid , alkali, solvent |
Ressitance to pollution | OK | Good | Good | Good |
Anti-Bacteria | Good | Good | Good | Good |
Resistance to high temperature | OK | Good | Good | Color changed under high temperature |
Resistance to impact | OK | OK | OK | Good |
Ability to bearing | Good | Good | Good | Good |
Electrical conductivity | No | No | No | Yes |
Ressitance to humidity | Good | Good | Good | Good |
Resistance to Radio | Good | Good |
Good |
Fair |
Physical Performance | solid | solid | solid and durable | It depends |
