Payment & Shipping Terms:
|Meterial:||1.0 Mm Cold Roll Steel Sheet||Finishing:||High Temperature Epoxy Power Coating|
|Worktop:||12.7 Mm Laboratory Phenolic Resin Worktop||Supporting:||C Frame Made Of 60*40*1.5 Mm Thickness|
|Worktop Loading Capacity:||Over 200 Kg Per Meter||Reagent Rack Column:||Metal With Epoxy Caoting|
|Reagent Rack Layer:||10 Mm Tempering Glass||Reagent Rack Loading Capacity:||Over 30 Kg Per Layer|
modular laboratory furniture,
lab systems furniture

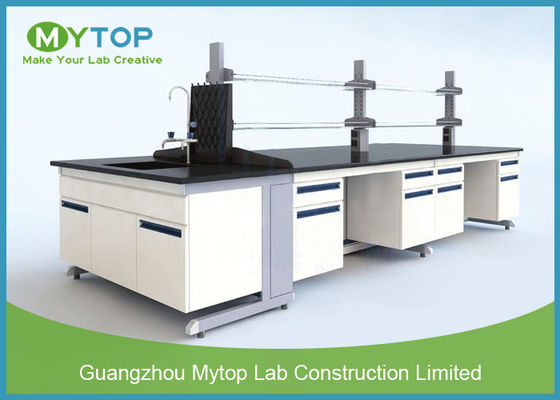

Anti-Corrosion All Steel C Frame Metal Laboratory Furniture Island Table For Cleanroom
2.1 Structure: Steel structure and steel- wood structure
2.2 Frame: "C" frame and "H" frame, by welding the steel tube(60*40*1.5mm) as the tables supports`frame. The surface of the steel is acid-washing and powder-coated. With a excellent performance of resistant to the acid and alkali.
2.3 Doors and drawers panel: Made of 18mm high pressure semi-solid wood(MDF) covered with 0.4mm HPL (High Pressure Laminate) and sealed with 3mm PVC on edging strips. High quality of 175 degree open hinges, and embedded aluminum pulls coated with epoxy resin powder.
2.4 Cabinets body panels:
Made of 15mm high pressure semi-solid wood(MDF) covered with 0.4mm HPL (High Pressure Laminate) and sealed with 3mm PVC on edging strips. The color of the drawers and cabinets are optional.
2.5 Regent shelves: Epoxy powder coated; Used 60*30*2mm tube steel to be the support column. Two layers of 12mm reinforced glass; Excellent of weight-bearing, solvents resistance. Stainless steel of guardrails on the both side of the layer to protect the regents from dropping off.
2.6 PP, ceramic sink and faucets: Anti-acid and alkali, beautifully finished and completed with the countertops.
2.7 Gas valve: Thick copper and epoxy resin-coated. Eye washer; Solid brass, coating with epoxy resin powder.
2.8 Sockets and aluminum duct; Suitable for variety of power supply system and flexible position change. Special lab socket, international standard for various of instruments and equipment.
