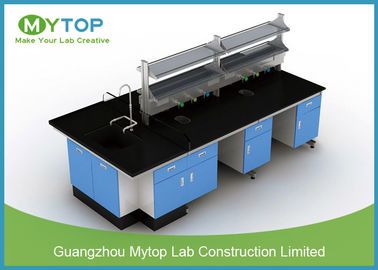

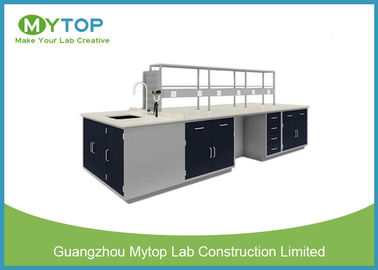

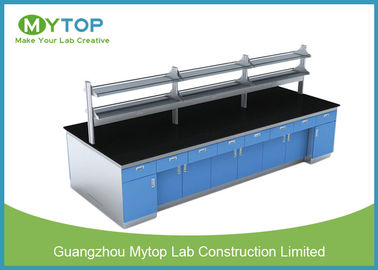

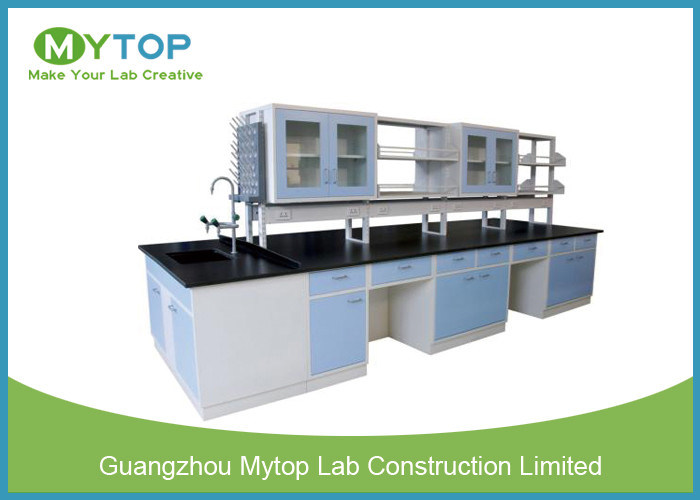

Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure

Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure
Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure

Large Image :  Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-FST-3000
Payment & Shipping Terms:
Minimum Order Quantity: I Meter
Price: Negotiable
Packaging Details: Carton box or plywood wood packing
Delivery Time: 7 to 15 working days after we
Payment Terms: T/T, L/C, Western Union
Supply Ability: Over 20,000 Meter Per Month
Detailed Product Description
Meterial: 1.0 Mm Cold Roll Steel Sheet Finishing: High Temperature Epoxy Power Coating
Worktop: 19 Mm White Color Epoxy Resin Worktop Supporting: 60*40*1.5 Mm C Frame
Worktop Loading Capacity: Over 300 Kg Per Meter Reagent Rack Column: Aluminum Alloy
Reagent Rack Layer: 10 Mm Tempering Glass Reagent Rack Loading Capacity: Over 50 Kg Per Layer
High Light:

steel laboratory furniture

,

lab systems furniture

1. Product:



Durable Chemical Resisting Metal Laboratory Furniture With Suspended Cabinet For Pharmacy



2. Technical Data



Structure All steel structure with C-frame,H-frame,floor mounted all are available and customized framework designed. combine with space storage function and flexible cabinet.
Framework
Material
standard 60 ×40 ×1.5mm square steel tube spraying epoxy resin powder coating.
other request by customer is available.
Body Material 1.0mm/1.2mm/1.5mm cold-roll steel sheet/stainless steel/galvanized steel sheet/PP(polypropylene)/FRP(fiber reinforce plastic) all available.
Plywood,MDF,HPL also can choice for the cabinet body.
Color Customer optional. (Contact MonchiLab for the color sample!!!)
Dimension Customized size solution.
Worktop 1) 15mm/19mm/25mm thickness Epoxy Resin tops,black,gray,white color for option.
2) 13mm/16mm/19mm/25mm thickness Phenolic Resin tops,black, gray,white color for option.
3) 1.0mm/1.2mm 304# stainless steel cover with 18mm thickness MDF as a worktop.
4) 20mm thickness laboratory grade ceramic tops,black color.
5) 20mm/30mm/50mm marble tops,black color.
a: All lab furniture worktop is chemical resistant,durable and anti scratch.UV light proof.
perfect performance of chemical resistant like acid,alkali,chemical reagent,organic solvent.
b: Lab grade ceramic top is able to high temperature resistant more than 1000°C and no affect.
able to resist instant temperature 1200°C & there is no affect when temperature is up to 160 °C.
c: Impact cutting resistant.monolithic smooth.
Cabinet For a better appearance and high efficient working station,we suggest lab furniture provide some cabinet.our standard cabinet size is 400 ×450 ×600,600 ×450 ×600.other cabinet size should be customized and approval.
Handle 304# stainless steel/Aluminum/Plastic handle are available.
Reagent Shelf Module steel column/Aluminum column,12mm tempered glass as the layer and other material board is optional,like epoxy resin,phenolic,marble,granite,stainless steel.
Sink PP sink,epoxy resin sink,stainless steel sink all for option.
Faucet Single taps/two way taps/triple taps for cold water,cold&hot water,pure water taps,sensor taps all is up to your choice.Stainless steel,material,brass body with ceramic valve ore with epoxy resin powder coating.
Socket Water proof lab furniture socket, explosion proof socket,standard socket used in your country is for your option.
Drip Rack Drip rack is up to your actual function demands,it's used in most of lab that located with water taps.customized size and material is available.
Flexible function Flexible functional lab furniture is widely acceptable and nice evaluation all over the world


3. More WAorktop Option

 Item and Worktops      Phenolic Resin      Epoxy Resin      Ceramic  Stainless Steel
Raw Material  Laminated by kraft paper and phenolic resin Mixed by epoxy resin and quart Mixed by clay minerals steel
Thickness  12.7mm

15,16,19,20,25 mm

20mm 1.0 mm
Ability to clean  OK OK OK Good
Resistance to acid-base OK OK Good Good
Resistance to corrosion resistance to corrosion of acid, alkali , solvent  resistance to corosion of acid, alkali, solvent Good resisntace to corrosion of acid, alakli and solvent  normal resistanceto corrosion of acvid , alkali, solvent
Ressitance to pollution  OK Good Good Good
Anti-Bacteria Good Good Good Good
Resistance to high temperature  OK Good Good Color changed under high temperature
Resistance to impact OK OK OK Good
Ability to bearing  Good Good Good Good
Electrical conductivity No No No Yes
Ressitance to humidity  Good Good Good Good
Resistance to Radio  Good Good

Good

Fair
Physical Performance  solid solid solid and durable It depends






Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure 0

Pharmacy Metal Laboratory Furniture With Suspended Cabinet All Steel Structure 1
