Product: | Metal Laboratory Fume Hood | Size:: | L:1500*W:800*H:2350 Mm |
---|---|---|---|
Casing: | 1.2 Mm Cold Roll Steel | Casing Finishing: | High Temperature Matt Epoxy Coating |
Guiding Plate: | 6 Mm Compact Board | Sash Window: | 5 Mm Maturating Glass |
Water: | PP Sink And Brass Water Tap | Electrical: | Water Proof Sockets |
Highlight: | laboratory fume cupboard,chemical fume hood |
1. Product

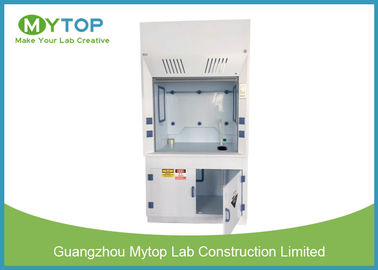

5 Feet Clinic Metal Laboratory Fume Hood For Hospital Laboratory Smell Extraction
2. Application
Guangzhou Mytop fume extraction hood system is a kind of high efficiency device specially designed for using in laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances, can remove harmful gas, smoke and dust, ensure the ideal and safe air quality, keep away hazardous substances from the human body effectively, and protect health of the user. It has been widely used in various experiment and production fields, such as electronic engineering, laser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the like, which promotes the preoductivity and working performance effectively.
3. Material
Cabinet: used 1.2 mm thick of cold-rolled steel sheet production.all the steel parts by pickling,
phosphatizing treatment surface by the epoxy resin powder coating .
Working Tops: Laminated / Phenolic Resin/ Epoxy Resin/ Stainless Steel / Ceramic/Marble .
Sash: With blast proof glass lined with glue for the front viewing window,
the glue sticks the broken glass in case of glass breaking, to ensure the safety of the operator.
Baffle: Electronically controlled center flowing guide can be adjusted with its mouth size according to the amount of smoke,
to ensure a free smoke driving away.
Electronical Control Panel: set up to the front face for easy operate.
The applying of touching switches upgrade the product class degree to automatic control level.
Hinge: DTC105º alloy hinges / 304 # stainless steel hinges
Sink: Imported PP integrate molded sink to be acid and alkali resistance.
Faucet: single water faucet in white color,faucet mouth is made of brass in fairly sharp shape.
Other Accessories:
- Modular electric sockets panel and control devices
- Removable painted metal plugging (outside)
- Two tubes fluorescent lamp (LED on request)
4. Specification
Model |
MT-MFH-1200 |
MT-MFH-1500 |
MT-MFH-1800 |
Size(W*D*H) |
1200*850*2350mm |
1500*850*2350mm |
1800*850*2350mm |
Average Wind Speed |
0.4-0.6m/s adjustable |
||
Noise Level |
< 60dB(A) |
||
Exhaust air rate |
1300-2000m3/h |
||
Opening height |
20-750 mm |
||
Luminance |
>300LX |
||
Power |
220V/50HZ |
||
Motor power |
0.5-1.1KW |
||
Socket |
10-15 |
||
Remark |
Remote control, sterilization etc, available |
