Payment & Shipping Terms:
|Worktop:||19 Mm Black Epoxy Worktop||C Frame:||60*40*1.5 Mm Cold Roll Steel Tube|
|Cabinet:||18 Mm Plywood With HPL||Legs:||Adjustable Less Than 50 Mm For Lab Bench Balance|
|Hinge:||DTC 110 Degree||Handle:||All In One Aluminum Handle|
dental lab bench,
laboratory island bench
1. Product Name
C Frame Plywood Cabinet L Shape Epoxy Worktop Hospital Lab Furniture Wall Bench
2. Who need this
Any testing labroatory in hospital , not in the cleanroom
3. Worktop Option:
A.12.7mm thickness phelonic resin
B.19mm thickness Epoxy Resin Worktop
C. 20mm Ceramic Worktop
D. 13mm thickness Trespa
E 20 mm granite
Popular Laboratory Worktop Comparision
|Item and Worktops||Phenolic Resin||Epoxy Resin||Ceramic||Stainless Steel|
|Raw Material||Laminated by kraft paper and phenolic resin||Mixed by epoxy resin and quart||Mixed by clay minerals||steel|
|Thickness||12.7mm||15,16,19,20,25 mm||20mm||1.0 mm|
|Ability to clean||OK||OK||OK||Good|
|Resistance to acid-base||OK||OK||Good||Good|
|Resistance to corrosion||resistance to corrosion of acid, alkali , solvent||resistance to corosion of acid, alkali, solvent||Good resisntace to corrosion of acid, alakli and solvent||normal resistanceto corrosion of acvid , alkali, solvent|
|Ressitance to pollution||OK||Good||Good||Good|
|Resistance to high temperature||OK||Good||Good||Color changed under high temperature|
|Resistance to impact||OK||OK||OK||Good|
|Ability to bearing||Good||Good||Good||Good|
|Ressitance to humidity||Good||Good||Good||Good|
|Resistance to Radio||Good||Good||Good||Fair|
|Physical Performance||solid||solid||solid and durable||It depends
4. Laboratory Furniture Consctruction
4.1 Structure: Steel structure and steel- wood structure.
4.2 Frame: "C" frame , welding the steel tube(60*40*1.5mm) as the tables supports`frame. The surface of the steel is acid-washing and powder-coated. With a excellent performance of resistant to the acid and alkali.
4.3 Doors and drawers panel: Made of 18 mm high pressure semi-solid wood(MDF) covered with 0.4mm HPL (High Pressure Laminate) and sealed with 3mm PVC on edging strips. High quality of 175 degree open hinges, and embedded aluminum pulls coated with epoxy resin powder.
4.4 Cabinets body panels:: Made of 15mm high pressure semi-solid wood(MDF) covered with 0.4mm HPL (High Pressure Laminate) and sealed with 3mm PVC on edging strips. The color of the drawers and cabinets are optional.
4.5 Other accessories on the worktops for the client`s individual needs:
Regent shelves: Epoxy powder coated; Used 60*30*2mm tube steel to be the support column. Two layers of 12mm reinforced glass; Excellent of weight-bearing, solvents resistance. Stainless steel of guardrails on the both side of the layer to protect the regents from dropping off.
4.6 PP, ceramic sink and faucets: Anti-acid and alkali, beautifully finished and completed with the countertops.
Gas valve: Thick copper and epoxy resin-coated. Eye washer; Solid brass, coating with epoxy resin powder.
Sockets and aluminum duct; Suitable for variety of power supply system and flexible position change. Special lab socket, international standard for various of instruments and equipment.

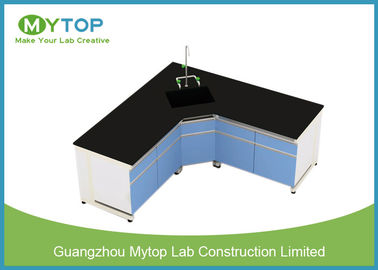

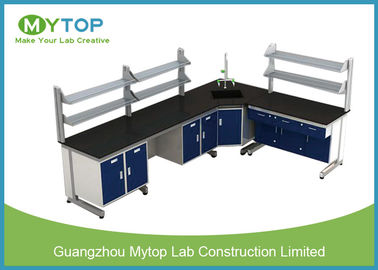

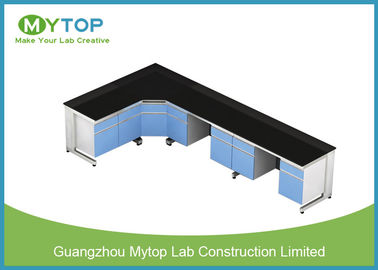

5. Picture Refernce
