Product Details:
Payment & Shipping Terms:
|
Main Material: | PP | Size: | W:1500*D:800* H; 2350 Mm |
---|---|---|---|
Color Option: | White Or Grey | Water Supply: | One PP Cap And One Single Water Tap |
Socket: | 3 Pcs Three Pin Socket | Worktop: | 12 Mm PP Sheet |
Light: | 220V 18w Faucet | Control Panel: | English TIFF Colorful Control Panel |
High Light: | laboratory fume cupboard,laboratory ventilation hoods |
1. Product

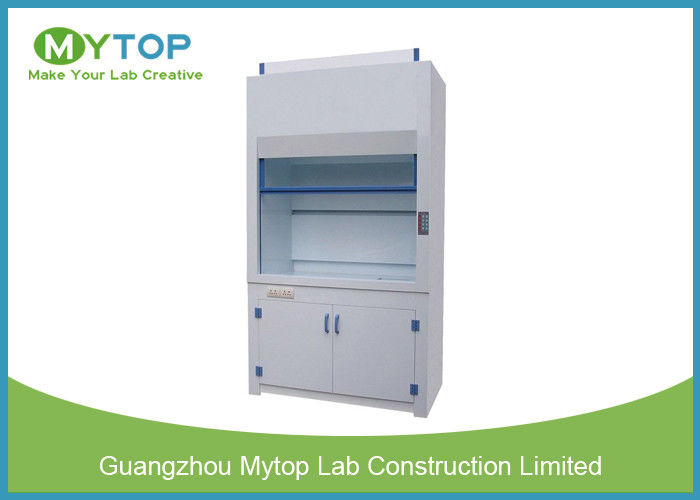

5 feet Strong Chemical Resistance PP Laboratory Fume Hood For Anti-corrosion In Chemical Laboratory
2. Advantage
PP fume hood have the characteristics of strong acid and alkali resistance and anti-corrosion. It is appropriate for various of high clean laboratory, for example: medicine laboratory, food laboratory, semiconductor laboratory, trace metal laboratory, biology laboratory, and it is widely applied in chemical, medical, vehicle, steel factory, university and scientific research institution, etc.
3. Material
Parts | Details |
Upper Part | The upper consist of rear panel, side panel, control panel, and ventilating hood. The casing is made of 8mm PP sheet , processing by plastic cutting , bending and plastic welding |
Upper lining Panel | Ling panel is made of 5 mm PP sheet , super strong resintact to chemcials , acid and alkali |
Baffie | same material with upper part lining panel |
Worktop | laboratory 12 mm PP worktop or other option |
Base cabinet | Base cabinet is made of 8 mm PP l sheet, processed by laser cutting, bending and welding , its surface is epoxy coated in over 220 degree |
Sash | The Sash frame is made of PP and can move up and down , stopping at any location. The window glass is made of 5 mm tempering glass |
Eletrical | 2* 30W lamp , 220V, 50Hz , 2 pcs of water proof socket |
Water Supply | one way water tap and one small PP sink |
4. Stand Size
Fume hood | Size | Ventilation | Exahust oulet |
4 feet fume hood | L:1200*W: 800*H: 2350 mm | 1700 CMH | Dia 230 mm |
5 feet fume hood | L:1500*W: 800*H: 2350 mm | 2100 CMH | Dia 300 mm |
6 feet fume hood | L:1800*W: 800* H: 2350 mm | 2600 CMH | Dia 300 mm |
5. Working Standard
A. Sash openning height is 800 mm from worktop
B. Air velicity : 0.4 to 0.6 m/s
C. Noise : less than 60 db
