| Size: | 1500*800*2350 Mm | Casing: | Cold Roll Steel With Epoxy Power Caoting |
|---|---|---|---|
| Sash: | Move From Up And Down Or Left To Right | Power Supply: | 110V To 240V, 50/60Hz |
| Water Supply: | One PP Sink And One Way Water Tap | Lighting: | 1*18 W Lamp |
| Socket: | 2* Water Proof Socket | Exhaust Fan: | No |
| Worktop: | 12.7 Mm Black Phenolic Resin | Buffer: | Stainless Steel |
| High Light: | laboratory ventilation hoods,chemical fume hood |
||
1. Product

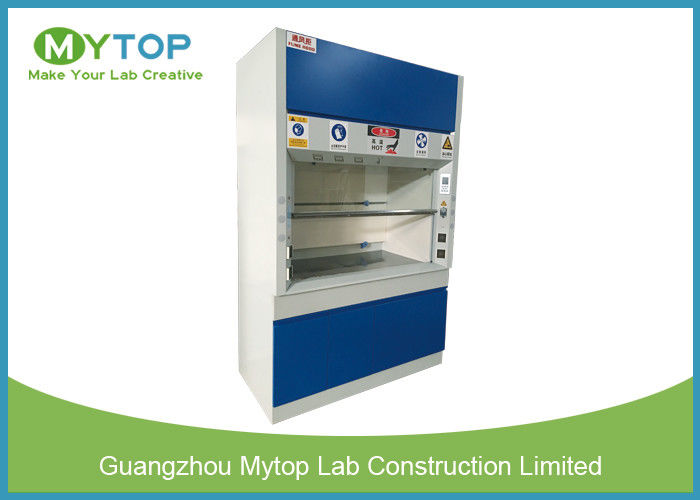

5 Feet Ducting Laboratory Metal Fume Hood For Chemical Exhaust Extraction, School and Research Insitute
2. Suitable for Whom
A. Any School Laboratory and University Laboratory
B. Cometic, Pharmacy, Hospital, Microbiology and so on industry laoratories
C. Any other laboratories don't use strong acid and alkali during the testing
3. Material
| Parts | Details |
| Upper Part | The upper consist of rear panel, side panel, control panel, and ventilating hood. The casing is made of 1.2 mm cold roll steel sheet , processing by laser cutting , bending and welding , epoxy coating on the surface . |
| Upper lining Panel | Ling panel is made of 5 mm Compact board , resintact to chemcials , acid and alkali |
| Baffie | same material with upper part lining panel |
| Worktop | laboratory 12.7 mm black phenocli resin worktop |
| Base cabinet | Base cabinet is made of 1.2 mm cold roll steel sheet, processed by laser cutting, bending and welding , its surface is epoxy coated in over 220 degree |
| Sash | The Sash frame is made of aluminum alloy and can move up and down , stopping at any location. The window glass is made of 5 mm tempering glass |
| Eletrical | 2* 30W lamp , 220V, 50Hz , 2 pcs of water proof socket |
| Water Supply | one way water tap and one small PP sink |
4. Stand Size
| Fume hood | Size | Ventilation | Exahust oulet |
| 4 feet fume hood | L:1200*W: 800*H: 2350 mm | 1700 CMH | Dia 230 mm |
| 5 feet fume hood | L:1500*W: 800*H: 2350 mm | 2100 CMH | Dia 300 mm |
| 6 feet fume hood | L:1800*W: 800* H: 2350 mm | 2600 CMH | Dia 300 mm |
5. Working Standard
A. Sash openning height is 800 mm from worktop
B. Air velicity : 0.4 to 0.6 m/s
C. Noise : less than 60 db
