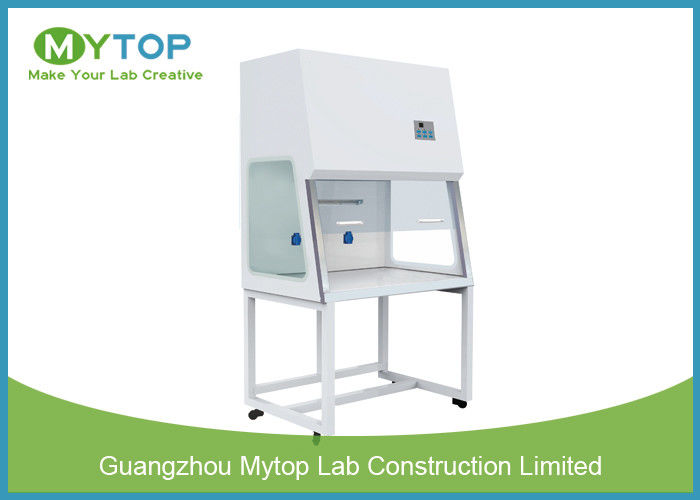

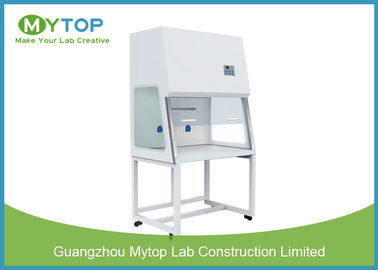

Hospital PRC Lab PCR Cabinet with UV Sterilization System Lab Hoods

Hospital PRC Lab PCR Cabinet with UV Sterilization System Lab Hoods
Hospital PRC Lab PCR Cabinet with UV Sterilization System Lab Hoods

Large Image :  Hospital PRC Lab PCR Cabinet with UV Sterilization System Lab Hoods

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: PCR-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 10 to 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2,000 sets per month
Detailed Product Description
Product: Biological Safety Cabinet External Size: L:1500*W:705* H: 1770 Mm
Consumption: 700 W Internal Size: L:1400*W:595* H: 560 Mm
Work Zone Material: 304 Stainless Steel Power Supply: AC220V±10% ,50/60 Hz;110V±10%,60Hz
Surface Height: 750 Mm Warranty: One Year
High Light:

biological safety hood

,

biosafety cabinet

1. Product



Hospital PRC Lab PCR Cabinet with UV Sterilization System Lab Hoods





2. Advantage:



1. LED display.

2. UV sterilization system.

3. HEPA filter efficiency 99.999% at 0.3μm.

4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.

5. UV timer (1-99 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.





3. Technical Data



Model PCR-800 PCR-1000 PCR-1200 PCR-1300 PCR-1500
External Size (W*D*H)

800*705

*1770mm

1000*705

*1770mm

1200*705

*1770mm

1300*705

*1770mm

1500*705

*1770mm

Internal Size (W*D*H)

700*595

*560mm

900*595

*560mm

1100*595

*560mm

1200*595

*560mm

1400*595

*560mm

Work Surface Height 750mm
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Front & Side Windows 5mm toughened glass , anti-UV
Motorized Manual Motorized Motorized Motorized
Max Opening 320mm
Pre-filter Polyester fiber, Washable
HEPA Filter 99.999% efficiency at 0.3μm.
Airflow Velocity 0.3-0.5m/s, speed adjustable
Noise ≤60dB
UV Lamp 20W*2 30W*2
Emission of 253.7 nanometers, with UV timer
Fluorescent Lamp 40W*1
Illumination ≥1000Lux
Shelf with IV bar Stainless steel, 502*150*50mm (W*D*H)
caster Universal caster with leveling feet
Consumption 300W 450W
Waterproof Socket Two, total load≤500W
Power Supply AC 220V±10%, 50/60Hz;110V±10%,60Hz
Standard Accessory UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
Gross Weight 130kg 150kg 170kg 180kg 200kg
Package Size (W*D*H)

860*920

*1350mm

1160*920

*1350mm

1360*920

*1350mm

1460*920

*1350mm

1660*920

*1350mm
