Product Details:
Payment & Shipping Terms:
|
Product: | Biological Safety Cabinet | External Size: | L;1300*W:750*H:2250 Mm |
---|---|---|---|
Consumption: | 700 W | Internal Size: | L:1300*W:600*H:660mm |
Work Zone Material: | 304 Stainless Steel | Power Supply: | AC220V±10% ,50/60 Hz;110V±10%,60Hz |
Surface Height: | 750 Mm | Warranty: | One Year |
High Light: | biological safety hood,biohazard safety cabinet |
1. Product

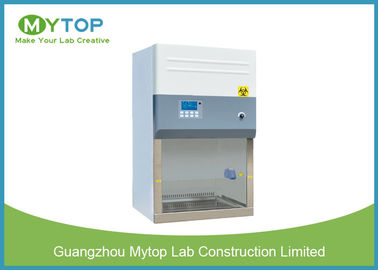

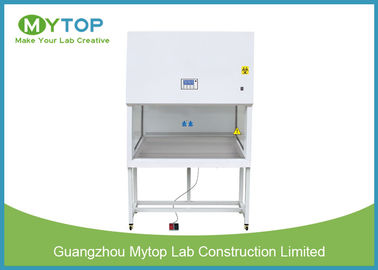

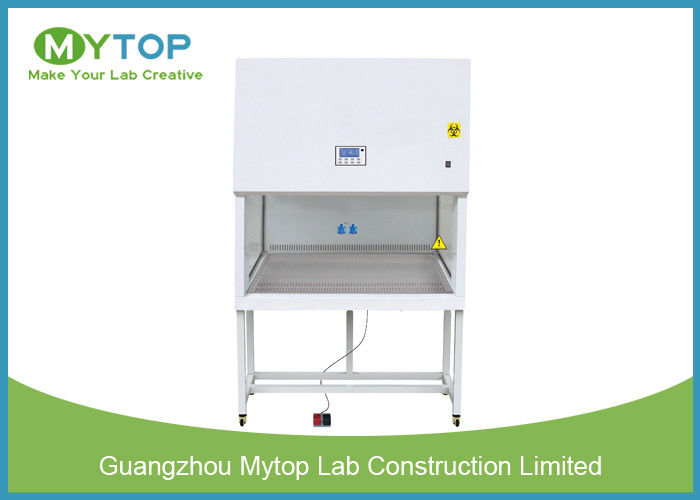

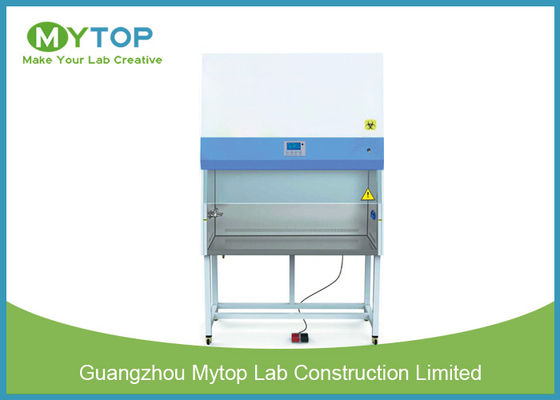

70% air Re-circulation Desktop Class II A2 Biological Safety Cabinet
2. Application
2.1 Three protection: operator, sample and environment.
2.2 Airflow system: 0 % air recirculation, 100% air exhaust
2.3 B2 Biological Safety Cabinet has higher class of safety protection compared with type A2,
2.4 It may be used for work with volatile toxic chemicals and radionuclides as required as adjuncts to microbiological studies
3. Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
4. Technical Data
Model | MT-1100IIA2-X | MT-1300IIA2-X | MT-1500IIA2-X | MT-1800IIA2-X | MT-2000IIA2-X | |
Internal Size (W*D*H) |
940* 600*660 mm | 1150*600*660 mm | 1350*600*660mm | 1710*600*660 mm | 1800*600*660mm | |
External Size (W*D*H) |
1100*750*2250mm | 1300*750*2250mm | 1500*750*2250mm | 1870*750*2290mm | 1950*800*2305mm | |
Tested Opening | Safety Height = 200 mm | |||||
Max Opening | 420mm | 420mm | 400mm | 400mm | 400mm | |
Inflow Velocity | 0.53±0.025 m/s | |||||
Downflow Velocity | 0.33±0.025 m/s | |||||
HEPA Filter | Two, 99.999% efficient at 0.3 um. Filter life indicator. | |||||
Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. | |||||
Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB | |||||
UV Lamp | 30W*1 | 30W* 1 | 40W* 1 | 40W*2 | 40W* 1 | |
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. |
||||||
Lamp | LED Lamp | Fluorescent Lamp | ||||
12W*2 | 14W*2 | 16W*2 | 40W*2 | 40W*2 | ||
Illumination | ≥1000Lux | |||||
Consumption | 760W | 800W | 900W | 900W | 1500W | |
Waterproof Sockets | Two, total load of two sockets: 500W | |||||
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | |||||
Control System | Microprocessor | |||||
Airflow System | 70% air recirculation, 30% air exhaust | |||||
Visual and audio alarm | Filter replacement, window over height, abnormal air flow velocity. | |||||
Material
|
Work Zone: 304 stainless steel | |||||
Main Body: Cold-rolled steel with anti-bacteria powder coating. | ||||||
Work Surface Height |
750mm |
|||||
Caster | Footmaster caster | |||||
Power Supply | 110/220V±10%, 60/50Hz | |||||
Standard Accessory | LED lamp,UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2 | Fluorescent lamp, UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2 | ||||
Optional Accessory | Water and gas tap | |||||
Gross Weight | 243kg | 280kg | 316kg | 395kg | 420kg | |
Package Size (W*D*H) |
1220× 1000× 1840 mm | 1460*1050*1800 mm | 1630*1000*1820 mm | 2000*950*1820 mm | 2090*1050*1860 mm |
