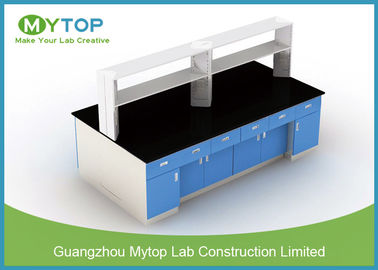

Steel Structure Lab Bench Furniture For HIV Laboratory Heat Resistance

Steel Structure Lab Bench Furniture For HIV Laboratory Heat Resistance
Steel Structure Lab Bench Furniture For HIV Laboratory Heat Resistance

Large Image :  Steel Structure Lab Bench Furniture For HIV Laboratory Heat Resistance

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-MT-3000H

Payment & Shipping Terms:

Minimum Order Quantity: 3.75 meter
Price: Negotiable
Packaging Details: Carton for cabinet and plywood packing for worktop
Delivery Time: 12 to 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 9, 000 meter per month
Detailed Product Description
Catergory: Hospital Lab Furniture Product: Laboratory Island Workbench
Feature: Grounded Cabinet Supported And Fully Cabinet Covered Specification: L:3000*W: 1500* H:850 To 900 Mm
Worktop: 16 Mm Tresspa Worktop Worktop Performance: Strong Chemical Resistance And Easy To Clean
High Light:

dental lab bench

,

laboratory island bench

1. Product

Easy Clean Steel Hospital Lab Furniture Lab Center Workbench For HIV Laboratory


2. Application

 Hospital Laboratory such as clinic laboratory, PCR laboratory, HIV laboratory , biosafety laboratory

3. Technical Data



A. Worktop: The worktop is based on the requirement of customers such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.

B. Structure: Steel structure, full cabinet design, the material for cabinet is 1.0mm BAOGANG cold rolled sheet. The processing procedures includes cutting, grooving, bending, shaping, assembling and polishing. The products are produced by precise CNC machine. All the welding points have been polished specially which will not hurt the hand. The inside cabinet is with front and back upright columns and reinforcing ribs to increase the bearing capacity and impact resistance capacity.

C. Cabinet: The cabinet is made of high quality cold rolled sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder. The cabinets can be opened with all blank space without middle support. The inside cabinet is equipped with adjustable setting for mobile layer.

D. C-Frame: It's made of 60x40x1.5mm steel pipe coated with epoxy resin powder.

E. Surface panel for door and drawer: The door is with double layer made of 1.0 BAOGANG cold rolled sheet. We can fill the sound insulation material into the inside space between two layers if it's required by customer. The drawer is shaped once made of bending cold rolled sheets. It's with excellent bearing capacity for the support of drawer. The sealed panel after bending connects with the outside drawer surface by self-drilling screws. It can prevent the crashing when closing the drawer and noise caused by abrasing the coated layer.

F. Bottom panel for cabinet body: The bottom panel is formed once with reinforcing ribs to increase its bearing capacity and prevent the deforming of steel layers.

G. Handle: Stainless steel U-type handle or long handle shaped once made of steel.

H. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.

I. Movable layer: It's with reinforcing rib inside to increase its bearing capacity to avoid deforming. It can be dissembled freely and the height can be adjusted.

J. Hinge: Using durable DTC 90 degree or 304 stainless steel hinge which can be used for long time.

K. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.
L. Shelf: The shelf is made of steel frame and steel hanging pieces. The layer is made of toughened glass which is suitable to put all kinds of chemicals on it.


4. Worktop Options

Worktops Compare Epoxy Resin Phenolic Resin Stainless Steel Edge Grain marble High Pressure Laminate
chemical resistance excellent excellent good fair fair
abrasion resistance good good good fair good
heat resistance excellent good good fair fair
impact resistance good good excellent good good
areas of use all all select select select
cost medium medium high medium low
moisture resistance excellent excellent excellent fair fair
bacterlal resistance excellent excellent excellent poor fair
