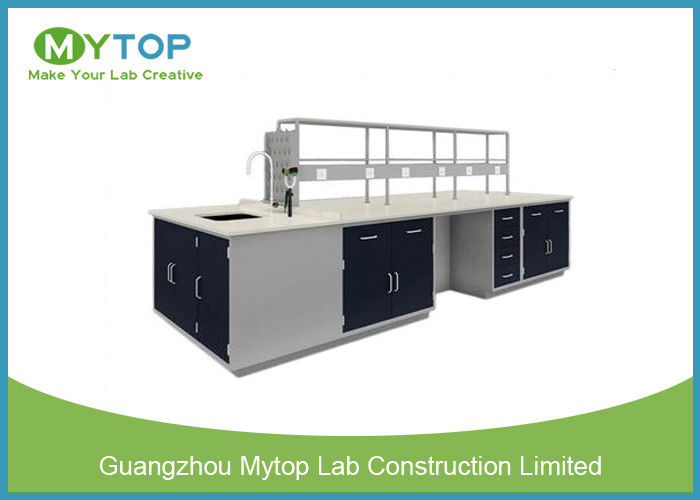

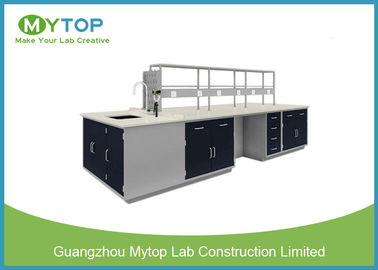

Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard

Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard
Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard

Large Image :  Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Mytop
Model Number: MT-FST-3000
Payment & Shipping Terms:
Minimum Order Quantity: I Meter
Price: Negotiable
Packaging Details: Carton box or plywood wood packing
Delivery Time: 7 to 15 working days after we
Payment Terms: T/T, L/C, Western Union
Supply Ability: Over 20,000 Meter Per Month
Detailed Product Description
Meterial: 1.0 Mm Cold Roll Steel Sheet Finishing: High Temperature Epoxy Power Coating
Worktop: 19 Mm Black Color Epoxy Worktop Supporting: 60*40*1.5 Mm C Frame
Worktop Loading Capacity: Over 250 Kg Per Meter Reagent Rack Column: 1.5 Mm Coll Roll Steel
Reagent Rack Layer: 10 Mm Tempering Glass Reagent Rack Loading Capacity: Over 50 Kg Per Layer
High Light:

modular laboratory furniture

,

steel laboratory furniture

1. Product:



Modular Science Metal Laboratory Furniture With Chemical Resistance Epoxy Worktop



2. Suitable for Whom



A. Any School Laboratory With Laboratory Equipemts not heavy than 280kgs but have large laboratory equipments

B. Any University Chemical , Physical or Bioliogical Laboratories

C Any owner want a more durable laboratory and want more space for storage

D. Any Reseach insistube laboratory who has small laboratory and limites space but need more storage space




3. Feature



1. European model with better appearance.
2. Excellent weight capacity with more than 200KG.
3. High quality accessories with famous brand.
4. Nice appearance with excellent process and finish, it meets with SEFA standard.
5. The quality is higher than our normal type. It's with high quality accessories, thicker material,
excellent processing on production, better coating, better weight capacity etc.





4. Technical Data



A. Worktop Regular configuration: 19mm epoxy resin worktop,12.7 mm lab grade phenolic resin worktop,20mm ceramic worktop or any other worktop specified by customers are available for your selection. There's water-proof partition with same material as worktop beside the sink.



B. Door and cabinet body:

1.0 or 1.2 mm cold rolled steel plate coated with AkzoNobel epoxy resin powder(famous brand) after welding, polishing, acid cleaning, phosphating etc.It includes 13 kinds of chemical treatment processes. Surface is very smooth after careful and repeated polishing. The powder quality is better than common type, the coating surface is with excellent adhesive force, excellent features on chemical resistance.The door is with sound absorbing material inside to make sound minimum when the door is opened or closed. Every cabinet is equipped with 4 adjustable feet in case the floor is not flat enough. The weight capacity can reach 90KG in horizontally when all doors are open fully.

C. Handle: Stainless steel 128mm U-type handle, long handle shaped once made of steel or long aluminum alloy handle.

D. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.

E. Hinge: 304 stainless steel hinge with high weight capacity. The hinge can be adjusted on different direction. The max angle can reach 170 degree.

F. Drawer sliding rail: Specialized made heavy duty drawer slide without noise. The weight capacity can reach 68KG on horizontally when the drawer slides are pulled fully. it can ensure the full opening for the drawer with good bearing capacity and without deforming.

G. Shelf: The shelf is made of 100x40mm steel frame and steel hanging pieces. The layer is made of 8mm toughened glass which is suitable to put all kinds of chemicals on it. Also custom-made reagent shelves with more designs are for your selection.

L. Accessories: TOFF brand. Sink is made of high quality PP material with size 550x450x310mm or 440x340x300mm. Epoxy sink is also available. To keep the sink stable, there's steel tubes to support it under the sink.
Triple outlet water faucet etc


Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard 0Modern Lab Furniture Bench With Chemical Resistant Epoxy Worktop SEFA Standard 1
