Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood

Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood
Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood

Large Image :  Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood

Product Details:

Place of Origin: Guangzhou , China
Brand Name: Mytop
Model Number: MT-MFH-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 10 to 18 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6,000 Unit Per Month
Detailed Product Description
Product: Metal Laboratory Fume Hood Size:: L:1500*W:800*H:2350 Mm
Casing: 1.2 Mm Cold Roll Steel Casing Finishing: High Temperature Matt Epoxy Coating
Guiding Plate: 6 Mm Compact Board Sash Window: 5 Mm Maturating Glass
Water: PP Sink And Brass Water Tap Electrical: Water Proof Sockets
High Light:

laboratory fume cupboard

,

chemical fume hood

1. Product

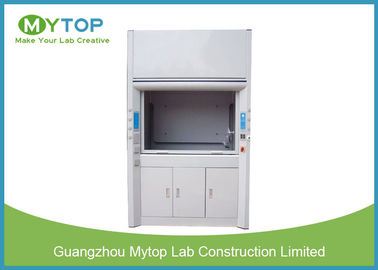

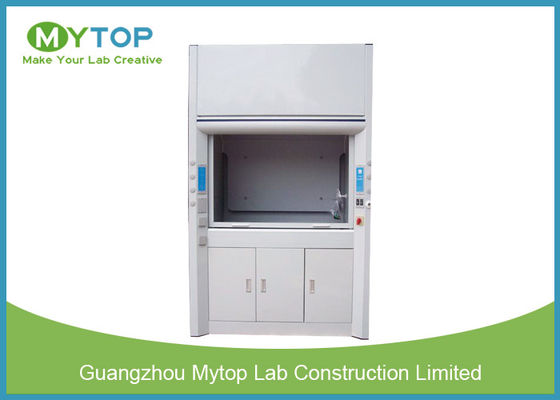

5 Feet Clinic Metal Laboratory Fume Hood For Hospital Laboratory Smell Extraction





2. Application



Guangzhou Mytop fume extraction hood system is a kind of high efficiency device specially designed for using in laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances, can remove harmful gas, smoke and dust, ensure the ideal and safe air quality, keep away hazardous substances from the human body effectively, and protect health of the user. It has been widely used in various experiment and production fields, such as electronic engineering, laser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the like, which promotes the preoductivity and working performance effectively.




3. Spefiication



Overall dimensions 1200mm/1500mm/1800mm*800mm*2350mm
Color White or white with blue on the top plate or customized
Color
Worktop 20mm thickness ceramic panel
20mm thickness American DURCON epoxy resins panel
12.7mm thickness American FORMICA solid physical and chemical plate
12.7mm thickness American Wilsonart Chemsurf chemical resistant laminate
12.7mm thickness Trespa worktop
Body&Cabinet: Drawer/Cupboard Cabinet/Hanging cabinet. Using 1.2~2mm thick of cold-rolled steel sheet production.
The steel parts by acid washing, phosphating and static electrical spraying with epoxy resin powder for erosion resistance.
Window glass 5 mm thick glass with tempered processing
Inner Design Conventional phenolic resin compact lining plate with three-level diversion design
Illumination Fluorescent lamp, LED light is optional
Power configuration One 30 mA electric leakage protector
Two 220 v - 10A universal socket
One 220 v - 16A socket
Main control panel The LCD control panel
Optional configuration items Remote control tap/ Fume hood cup slot/ Gas corker



Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood 0



Metal Fume Hood For Chemical Laboratory 5 Feet , Safety Chemistry Vent Hood 1
