Product Details:
Payment & Shipping Terms:
|
| Product: | Metal Island Bench | Cabinet: | 1.0 Mm Cold Roll Steel Sheet |
|---|---|---|---|
| Reagent Rack: | Aluminum Or Metal With Tempering Glass Layer | Reagent Rack Size: | L:3000*W: 300:H:800 Mm |
| Worktop: | 20 Mm Ceramic Worktop | Worktop Option: | Epoxy Resin , Phenolic Resin Or Granite Worktop |
| Handle: | Smooth Aluminum Handle | Hinge: | Metal All-in-one Handle With Epoxy Coating |
| Fume Hood: | L:1500*W:800*H: 2350 Mm | Fume Hood Accessories: | Light, Socket, PP Sink , Water Tap |
| High Light: | science lab tables,science room furniture |
||
1. Product

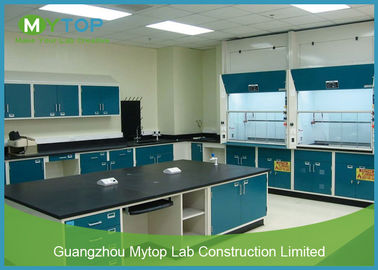

Science Laboratory Furniture Design With Steel Lab Table and Metal Chemical Fume Hood
2. Worktop Option
A. 12.7mm thick solid core physiochemical board, the edges are thickened to 25.4mm.
B. 14.6/19/25mm thick solid core physiochemical board.
C. 15/19/25mm thick epoxy resin worktop.
D. 20mm thick ceramic worktop.
E. 25mm thick MDF panel veneered with melamine and edge banded with 2mm PVC strips.
(2) Dimension: Φ 1800*850/900mm
(3) Body: 1.0mm thick cold-rolled steel sheet, coated with epoxy powder.
(4) Base cabinet/overhead cabinet: Steel cabinet, 1.0mm thick cold-rolled steel sheet, coated with epoxy powder.Layer: cold-rolled steel with 1.0mm thickness, coated with epoxy powder, adjustab
3. Lab Bench Specification
|
Product Name
|
20 mm Ceramic Worktop Science Laboratory Furniture High Temperature Resistance Island Bench |
|
Material
|
steel
|
|
Color
|
Light gray,blue,yellow,black etc,Specified by customers
|
|
Bady material
|
1.0mm/1.2mm/1.5mm cold-roll steel sheet/stainless steel/galvanized steel sheet/PP(polypropylene)/FRP(fiber reinforce plastic) all available.
Plywood,MDF,HPL also can choice for the drawer cabinet body
|
|
Worktop
|
a. 19mm thickness epoxy resin.
b. 20mm thickness ceramics. c. 1.0mm or 1.2mm thickness stainless steel. d. 18mm/19mm/20mm thickness Trespa. e. 25mm thickness plywood. f. 6mm or 10mm thickness tempered glass. |
|
Structure
|
C-frame lab central bench
|
|
Dimension
|
customized
|
|
Base cabinet
|
Heavy gauge formed 1.2mm cold-rolled and welded steel cabinet body construction provides strength and durability. Electrostatic epoxy applied powder coat paint system for superior corrosion resistance. Full height removable back provides full access to service chase.
|
|
Door & drawer
|
Telescoping panels, painted inside and out. Sound deadening materials are between panels. Interchangeable, interlocking drawer head, sound deadened is for quiet operation. One piece drawer body with radiused bottom is for easy cleaning. Nylon tired stainless steel ball bearing drawer rollers for smooth operation.
|
|
Adjustable Shelf
|
Full length adjustable shelf is for maximum storage of lab central bench
|
|
Handles
|
(1)128mm length 304 stainless steel handle
(2)custom-made, customer can choose the handle which is suitable for the steel lab furnitures. |
|
Reagent racks
|
The steel lab workbench shelves are made of 1.2mm cold-rolled steel coated with epoxy resin powder.layers are made of 12mm thickness tempered glass or cold-rolled steel and can be adjustable according to different laboratory table requirement.
|
4. Fume Hood Specification
| Parts | Details |
| Upper Part | The upper consist of rear panel, side panel, control panel, and ventilating hood. The casing is made of 1.2 mm cold roll steel sheet , processing by laser cutting , bending and welding , epoxy coating on the surface . |
| Upper lining Panel | Ling panel is made of 5 mm Compact board , resintact to chemcials , acid and alkali |
| Baffie | same material with upper part lining panel |
| Worktop | laboratory 12.7 mm black phenocli resin worktop |
| Base cabinet | Base cabinet is made of 1.2 mm cold roll steel sheet, processed by laser cutting, bending and welding , its surface is epoxy coated in over 220 degree |
| Sash | The Sash frame is made of aluminum alloy and can move up and down , stopping at any location. The window glass is made of 5 mm tempering glass |
| Eletrical | 2* 30W lamp , 220V, 50Hz , 2 pcs of water proof socket |
| Water Supply | one way water tap and one small PP sink |
