Product Details:
Payment & Shipping Terms:
|
Product: | Chemical Fume Hood | Main Material: | PP |
---|---|---|---|
Feature: | Strong Acid And Akali Resistance | Size: | L:1500*W:800*H2350 Mm |
Color Option: | White Or Rice Yellow | Air Speed: | 0.4~0.6 M/s |
High Light: | laboratory ventilation hoods,chemical fume hood |
1. Product

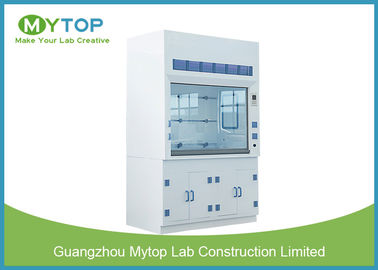

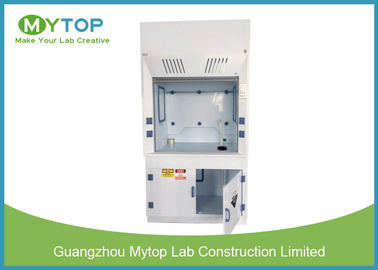

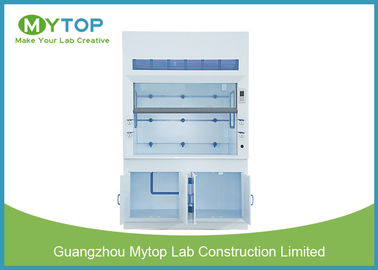

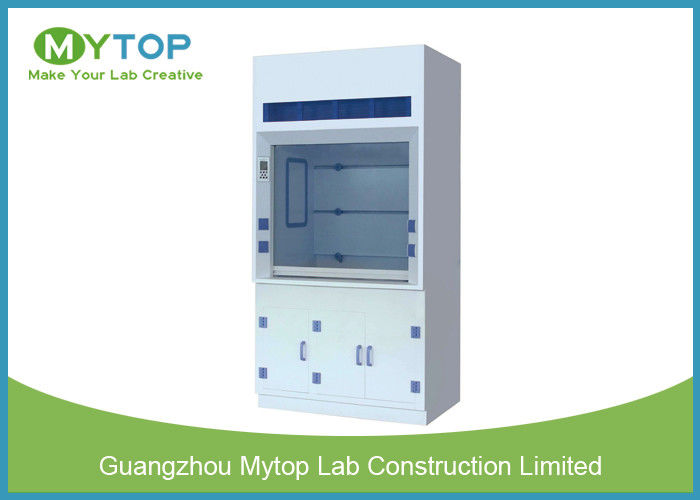

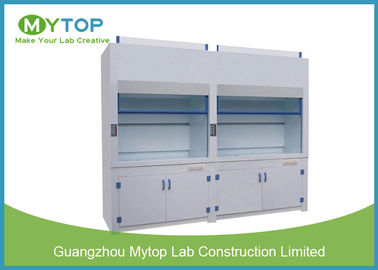

5 Feet Ducted PP Chemical Fume Hood For Pharmacy Factory Laboratory Strong Chemical Testing
Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.
2. Speciation
Fume hood | Size | Ventilation | Exahust oulet |
4 feet fume hood | L:1200*W: 800*H: 2350 mm | 1700 CMH | Dia 230 mm |
5 feet fume hood | L:1500*W: 800*H: 2350 mm | 2100 CMH | Dia 300 mm |
6 feet fume hood | L:1800*W: 800* H: 2350 mm | 2600 CMH | Dia 300 mm |
3. Feature
1. Fume Hood (fume cupboard & fume cabinet): main structure made of high quality PP board, perfect for resisting corrosion and heat.
2. Sash: The full view vertical raising sash is manufactured of laminated safety glass with the sash set into an extruded, low turbulence PVC track that delivers smooth operation and steady sash positioning.
3. Worktop: PP board, optional for epoxy resin,or ceramics for specific needs.
4. Lighting: 30W fluorescent lamp and switch.
5. Power: AC220V,50-60HZ
6. Exhaust system: The exhaust collar connects the fume hood to the exhaust duct.
7. Exterior Dimensions: 1200/1500/1800*850*2350mm
Contact Person: John Huang
