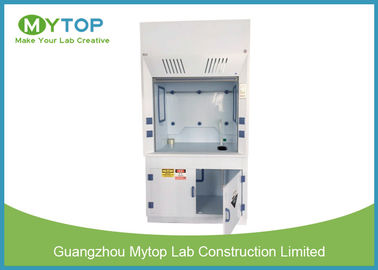

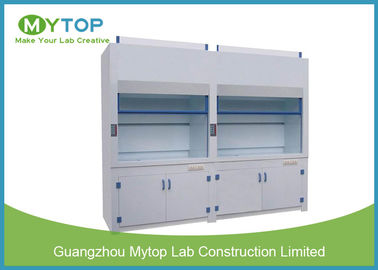

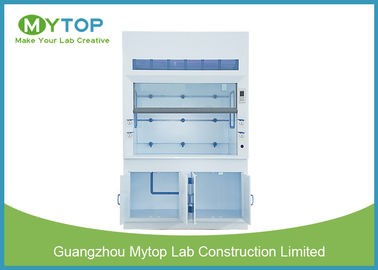

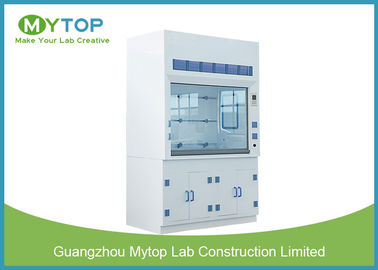

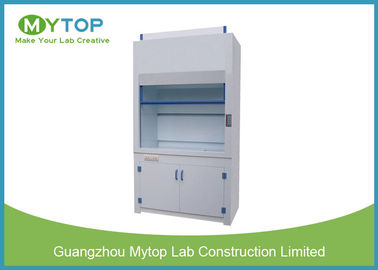

Full PP Chemical Fume Hood For School and University Chemistry Laboratory

Full PP Chemical Fume Hood For School and University Chemistry Laboratory
Full PP Chemical Fume Hood For School and University Chemistry Laboratory Full PP Chemical Fume Hood For School and University Chemistry Laboratory Full PP Chemical Fume Hood For School and University Chemistry Laboratory Full PP Chemical Fume Hood For School and University Chemistry Laboratory Full PP Chemical Fume Hood For School and University Chemistry Laboratory

Large Image :  Full PP Chemical Fume Hood For School and University Chemistry Laboratory

Product Details:

Place of Origin: China
Brand Name: Mytop
Model Number: MT-PFH-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood packing
Delivery Time: 12 to 20 working days
Supply Ability: 600 sets per month
Detailed Product Description
Proeduct: PP Chemical Fume Hood Feature: Strong Chemical Resistance
Size: 4 Feet, L:1200*W:800*H:2350 Mm Main Material: PP
Electrical: 3 Pcs Water Proof Socket Lighting: 30w Florescent* 1 Pcs
Water: Single Water Faucet And PP Sink Gas Tap: Optional
High Light:

laboratory ventilation hoods

,

chemical fume hood



1. Product



Full PP Chemical Fume Hood For School and University Chemistry Laboratory







2. Specification



Model MT-PFH-1200 MT-PFH-1200 MT-PFH-1800
Outer size(L*W*H) 1200*800*2350mm 1500*800*2350mm 1800*800*2350mm
Sash Opening Max:820mm
Exhaust valume(when wind speed is 0.5m/s) 23.4CMM/ 840CFM 30.6CMM/ 1100CFM 50.8CMM/ 1825CFM
worktop 12mm white PP board+6mm waterdam (ceramic and epoxy worktop is optional, the price is different)
Window 5mm tempered glass
cabinet High quality PP board
Accessrioes
Light 30W fluorescent lampx1 30W fluorescent lampx1 40W fluorescent lampx1
Socket AC220V/10A *4
RC water valve Pure water*1,water tap*1(optional for gas tap )
PP sink 1(optional)
Other optional specs as per customer’s special demands





3.Feature:



1. Fume Hood (fume cupboard & fume cabinet): main structure made of  high quality PP board, perfect for resisting corrosion and heat.

2. Sash: The full view vertical raising sash is manufactured of laminated safety glass with the sash set into an extruded, low turbulence PVC track that delivers smooth operation and steady sash positioning.

3. Worktop: PP board, optional for epoxy resin,or ceramics for specific needs.

4. Lighting: 30W fluorescent lamp and switch.

5. Power: AC220V,50-60HZ

6. Exhaust system: The exhaust collar connects the fume hood to the

exhaust duct.

7. Exterior Dimensions: 1200/1500/1800* 800* 2350mm
