45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets

45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets
45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets

Large Image :  45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets

Product Details:

Place of Origin: China
Brand Name: Mytop
Model Number: MT-FSC-

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood packing or carton packing
Delivery Time: 10 to 20 working days ater order is confirmed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8, 000 set per month
Detailed Product Description
Product: Flammable Storage Cabinet Size: L:1090*W:460*H:1650 Mm
Color: Yellow Material: 1.0 Mm Galvanized Steel
Processing: Laser Cutting , CNC Bending And Welding Surface Finishing: High Temperature Epoxy Coating
Adjustable Shelf: One Pcs Lock: Three Point Lock
High Light:

flammable goods storage cabinets

,

fireproof storage cabinets

1. Product:



45 Gallon Yellow Color Fireproof Flammable Storage Cabinet For Flammable Liquid Storage





2. Feature



1.D ouble wall construction with 38mm insulating air space for fire resistance.
Over 1.2mm thick, fully welded, construction holds squareness for longer life, offering greater protection in a fire.
2. 5cm leak tight sump at the bottom of cabinet’s maximally catches incidental drips.
3. Door can be fully opened to 180°, easy to operate, three-point latch with a manual lock for better security.
Standardized warning label is highly visible and anticorrosive.
4. Unique spill-catcher shelves catch incidental drips and adjust on 6cm centers.
5. Durable and chemical resistant, lead-free powder coat is painted inside and outside cabinets, minimizing the effects of corrosion and humidity.
6. 2 inches vents with integral flame arresters in both sides of every cabinet.
In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding.





3. Technical Date



Item Details
Cabinet Made of 1.0 mm GI steel , double construction, the gap is 38 mm and can fill in 36 mm fire proof material and heat proof material optionally
Shelf Made of 1.0 mm GI steel and different quantity accordly
Leakproof Slot There is one 50 mm leakproof slot in the button to prevent chemical from leak
Surface Processing Double side is epoxy coated 0.7 to 0.9 mm under 220 degree
Standard EN14470-1, OSHA 29 CFR 1910.106,NFPA CODE30
Warming Mark Muti-language warming mark is stick on in front of the cabinet
Grouding The cabinet is equipped with electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires
Hardware 1.0 mm thickness stainless steel hinge, open type 170 degree,
Lock Three point linkage lock





4. Specification



Gal Shelf QTY Door and Opening  External Size L*W*H mm  Weigh (Kg)
4 1 Single Door / Manual 430*430*560 mm 34 Kg
12 1 Single Door / Manual 590*460*890 mm  60 Kg
22 2 Single Door / Manual 600*460*1650 mm 90 Kg
22 1 Double Door / Manual 890*560*890 mm 70 Kg
30 1 Double Door / Manual 1090*460*1120 mm  100 Kg
45 2 Double Door / Manual 1090*460*1650 mm 138 Kg
60 2 Double Door / Manual 860*860*1650 mm 165 Kg
90 2 Double Door / Manual 1090*860*1650 mm 190 Kg





4. Details Pictures

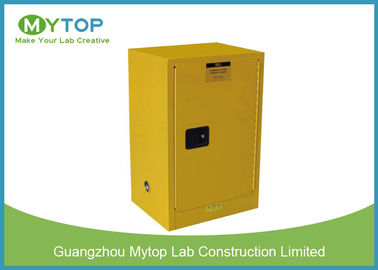

45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 0

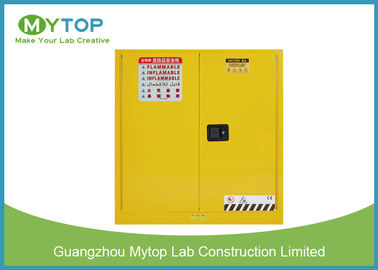

45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 1

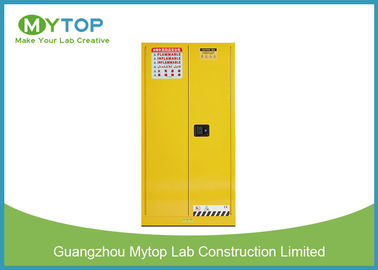

45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 2.

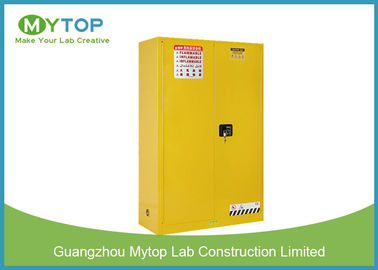

45 Gallon Venting Industrial Storage Cabinets , Corrosive Chemical Storage Cabinets 3
