Payment & Shipping Terms:
|Product:||Flammable Storage Cabinet||Size:||L:860*W:560*H:890 Mm|
|Color:||Yellow||Material:||1.0 Mm Galvanized Steel|
|Processing:||Laser Cutting , CNC Bending And Welding||Surface Finishing:||High Temperature Epoxy Coating|
|Adjustable Shelf:||Two Pcs||Lock:||Three Point Lock|
flammable storage cupboards,
fireproof storage cabinets

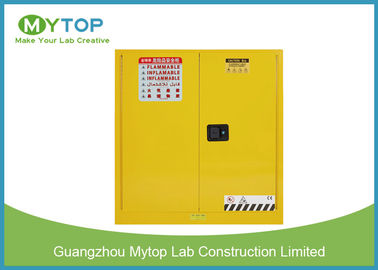

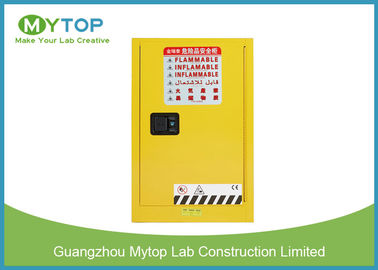

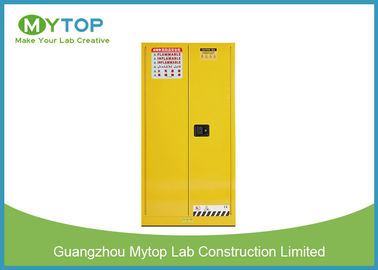

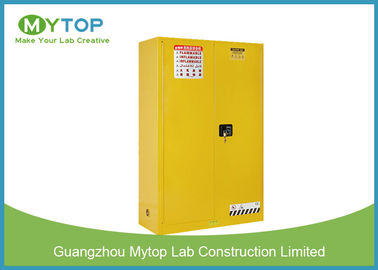

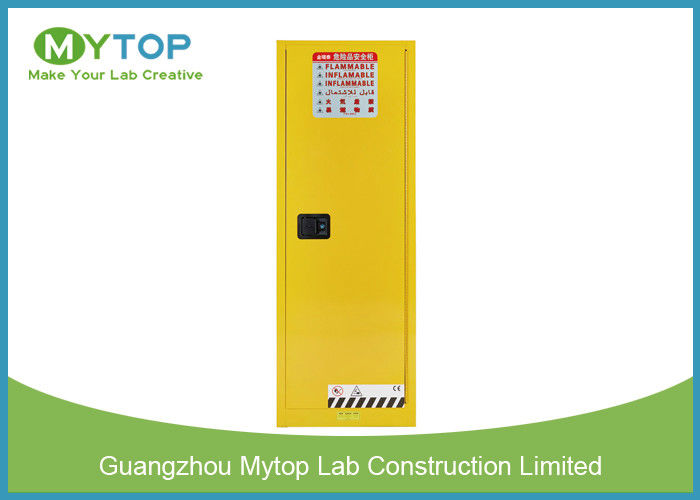

22 Gallon Yellow Color Fireproof Laboratory Flammable Storage Cabinet For Flammable Liquid Storage
1. Double wall construction with 38mm insulating air space for fire resistance.
Over 1.2mm thick, fully welded, construction holds squareness for longer life, offering greater protection in a fire.
2. 5cm leak tight sump at the bottom of cabinet’s maximally catches incidental drips.
3. Door can be fully opened to 180°, easy to operate, three-point latch with a manual lock for better security.
Standardized warning label is highly visible and anticorrosive.
4. Unique spill-catcher shelves catch incidental drips and adjust on 6cm centers.
5. Durable and chemical resistant, lead-free powder coat is painted inside and outside cabinets, minimizing the effects of corrosion and humidity.
6. 2 inches vents with integral flame arresters in both sides of every cabinet.
In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding.
3. Technical Date
|Cabinet||Made of 1.0 mm GI steel , double construction, the gap is 38 mm and can fill in 36 mm fire proof material and heat proof material optionally|
|Shelf||Made of 1.0 mm GI steel and different quantity accordly|
|Leakproof Slot||There is one 50 mm leakproof slot in the button to prevent chemical from leak|
|Surface Processing||Double side is epoxy coated 0.7 to 0.9 mm under 220 degree|
|Standard||EN14470-1, OSHA 29 CFR 1910.106,NFPA CODE30|
|Warming Mark||Muti-language warming mark is stick on in front of the cabinet|
|Grouding||The cabinet is equipped with electrostatic grounding conduction port to facilitate the connection of electrostatic grounding wires|
|Hardware||1.0 mm thickness stainless steel hinge, open type 170 degree,|
|Lock||Three point linkage lock|
|Gal||Shelf QTY||Door and Opening||External Size L*W*H mm||Weigh (Kg)|
|4||1||Single Door / Manual||430*430*560 mm||34 Kg|
|12||1||Single Door / Manual||590*460*890 mm||60 Kg|
|22||2||Single Door / Manual||600*460*1650 mm||90 Kg|
|22||1||Double Door / Manual||890*560*890 mm||70 Kg|
|30||1||Double Door / Manual||1090*460*1120 mm||100 Kg|
|45||2||Double Door / Manual||1090*460*1650 mm||138 Kg|
|60||2||Double Door / Manual||860*860*1650 mm||165 Kg|
|90||2||Double Door / Manual||1090*860*1650 mm||190 Kg|
4. Details Pictures
